Engineering & Technology

Historical Anecdote: A Royal Gift in 1875

During the 1875-76 India tour of the Prince of Wales, Maharaja Ishwari Prasad Narayan Singh of Banaras presented a set of astronomical instruments. These instruments were:

• Designed per the descriptions in Siddhanta Shiromani
• Based on the work of Bhaskaracharya (1150 CE)

This reflects the rich scientific tradition of Indian astronomy.

---

The Gifted Instruments – A Powerful Toolkit

Also gifted: A custom astronomical clock that displayed –

• Zodiac signs
• Moon phases
• Date, day, time (hours & minutes) This shows how deeply astronomy was integrated into daily life.

---

Why Instruments Mattered in Astronomy

Astronomy = Observation + Computation Instruments were crucial for:

• Measuring positions of celestial bodies with precision
• Tracking time since sunrise
• Ensuring predictions matched actual observations Visual estimation was not enough – mathematical instruments made all the difference.

---

Instruments in Siddhanta Shiromani (Bhaskaracharya's Works)

---

India's Metalworking History

India's metalworking history is rich, dating back to the Indus Valley Civilization. The famous bronze dancing girl of Mohenjo Daro is not only an artistic marvel but also proof of advanced metallurgical knowledge during 2500 BCE.

Key Highlights

• Ore Mining & Metal Extraction: The process involved identifying ore-rich regions, extracting the ore, smelting, and finally, metal casting.
• Lost-Wax Casting Method: Known as Madhuchchhista Vidhanam in Sanskrit and Cire-perdue in French, this technique was used to create intricate idols from alloys like Panchaloha.
• Smelter Knowledge: Ancient Indian smiths mastered:
  • Furnace design
  • Fuel combustion
  • High-temperature control
  • Use of refractories for durability

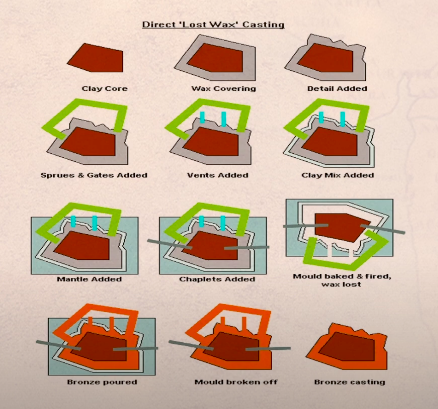

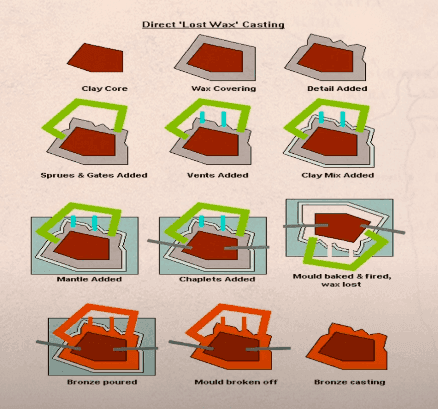

Direct 'Lost Wax' Casting (Diagram Description)

• Clay Core
• Wax Covering
• Detail Added
• Sprues & Gates Added
• Vents Added
• Clay Mix Added
• Mantle Added
• Chaplets Added
• Mould baked & Fired, wax lost
• Bronze poured
• Mould broken off
• Bronze casting

---

Timeline of Major Achievements

---

Alloys & Materials

• Bronze = Copper + Tin
• Brass = Copper + Zinc
• Wootz Steel = Iron + Carbon (famous for strength and flexibility)

India was the first to produce zinc metal through distillation - a technology centuries ahead of the world.

---

Ancient Mining Techniques

Steps in ancient mining (based on archaeological studies):

1. Fire Setting - Heating rocks to create cracks
2. Water Quenching - Cool suddenly to break rocks
3. Ore Extraction - Using tools like chisels, hammers
4. Smelting & Casting - Using furnaces and molds

Underground mines up to 500 feet deep were discovered. These mines even had ventilation tunnels - indicating planned mining techniques.

---

Mining Sites in Ancient India

These sites show evidence of advanced mining:

• Zawar (Rajasthan) - Zinc smelting
• Khetri (Rajasthan) - Copper mines
• Singhbhum (Jharkhand) - Iron mining
• Chamba, Chitradurga, Kadapa - Multiple metals

---

Modern Investigations

• Hindustan Zinc Ltd. & IIT Kanpur (1980): Studied zinc recovery from ancient slag.
• British Museum + MS University (1982): Discovered ancient zinc distillation furnaces and tools.

India was the first to produce metallic zinc on a substantial scale and introduce it to the world between 600 BCE – 200 BCE.

---

Historical Highlights (Zinc)

• Rajasthan was a major zinc mining hub by ~1000 BCE.
• Estimated 15,000 tons of zinc mined and processed.
• Metallic zinc production flourished by the 14th century CE.
• Zinc was exported before the 11th century CE.

---

Zinc Extraction - Scientific Background

• Melting point = 410°C
• Boiling point = 930°C
• Oxidizes at 550°C in open air → becomes zinc oxide
• So, zinc vapour must be rapidly cooled at ~500°C to preserve metal

---

Indian Innovation: Downward Drift Distillation

• Mentioned in the Rasa-Ratna-Samuccaya (11th century CE)
• Setup:
  • Two pots, one upright, one inverted over it
  • Solid charge sealed with clay
  • Reed stick in center: gas outlet
  • Heat applied to upper pot (~600°C)
  • Reed burns off → vapour flows down
  • Lower pot acts as a condenser → rapid cooling → zinc metal collected

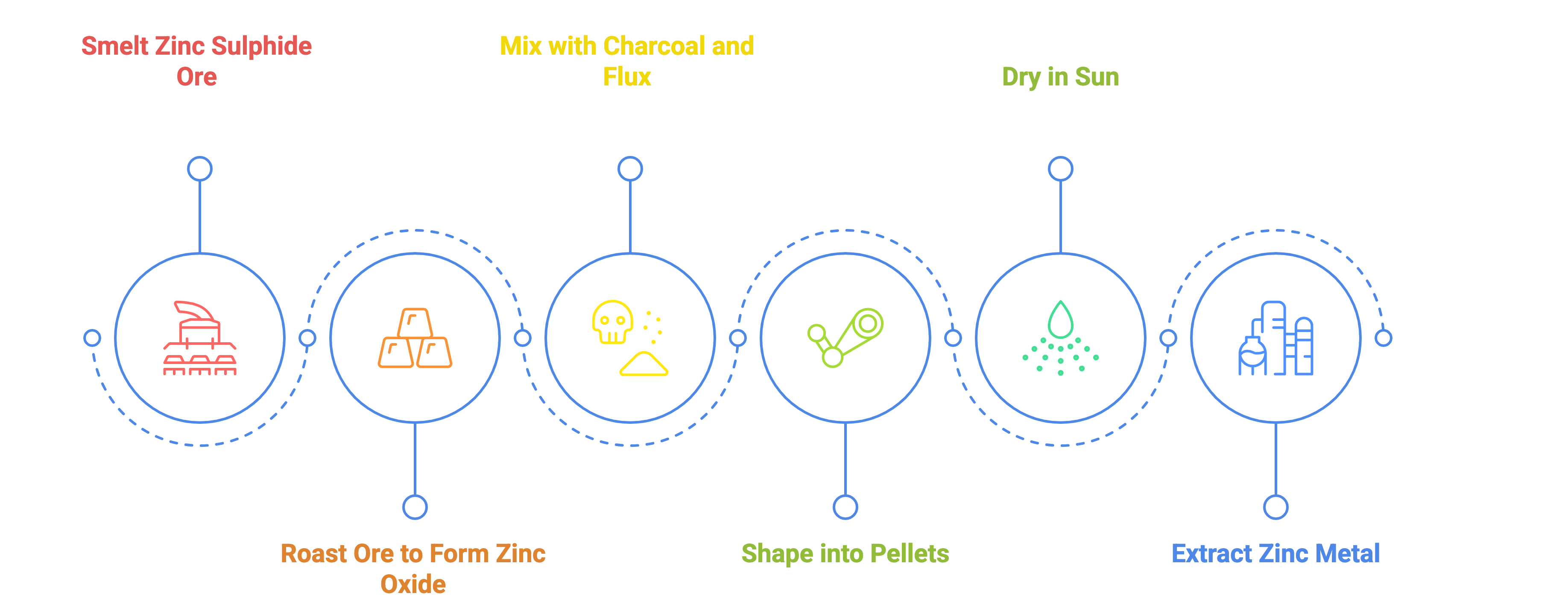

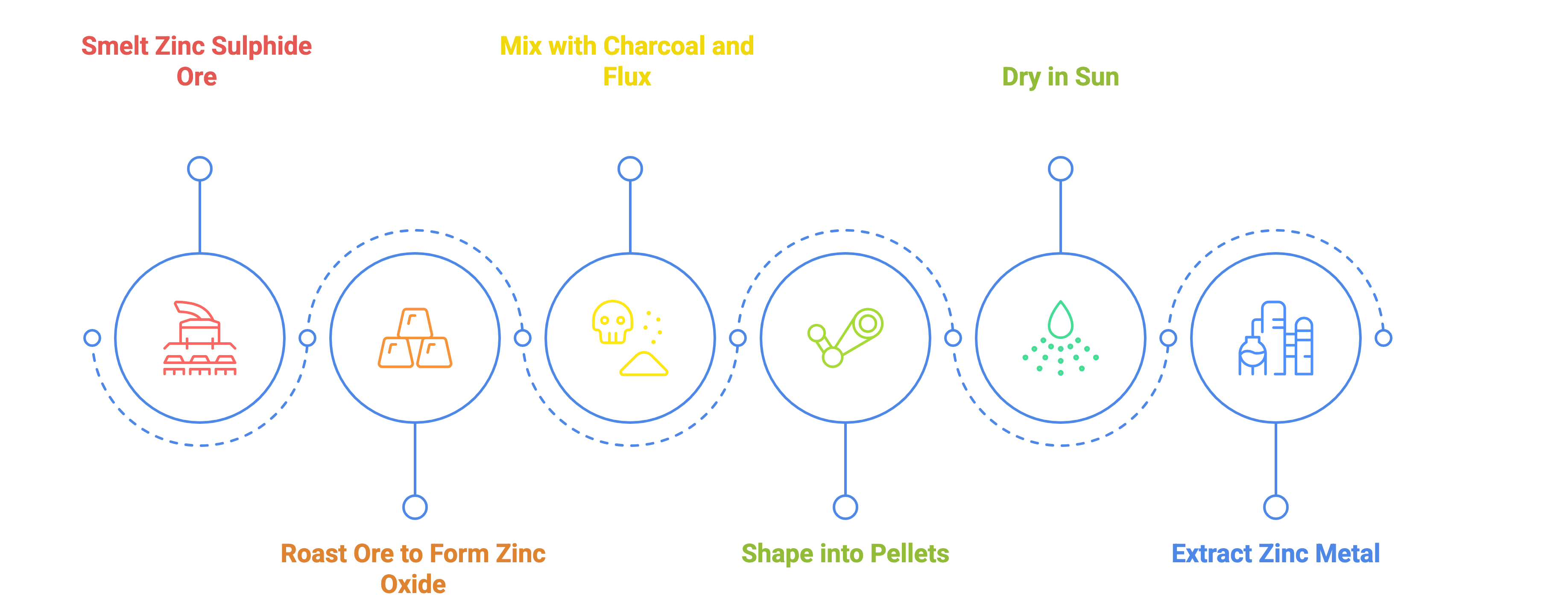

Steps in Zinc Smelting:

1. Smelt zinc sulphide ore
2. Roast ore to form zinc oxide
3. Mix with charcoal powder + salt + borax (flux)
4. Shape into pellets using cow dung + water
5. Dry in sun
6. Use downward drift distillation to extract zinc metal

---

The Indian Copper Legacy

• Copper use in India dates back to ancient times and continues today.
• Copper utensils held religious significance - used in rituals.
• Copper wires were used in string instruments like veena and violin.

Ancient Artifacts:

• Colossal Buddha Statue - 7.5 ft, 1 ton – Found in Sultan Ganj (Bhagalpur), ~2000 years old.
• 80 ft brass statue - Seen by Hiuen Tsang at Nalanda, constructed by King Shiladitya (606-647 CE).

2. Copper in Coinage

• Copper was the principal metal for minting coins and common seals.
• Implies advanced knowledge of mining and extraction.

3. Copper Extraction Process (From Rasa-Ratna-Samucchaya)

• Used mainly for Ayurvedic Bhasmas (powders).
• Two types of copper described:
  • Red Copper – 99.5% pure, ductile.
  • Black Copper – Contains oxides and impurities (Pb, Sn, Zn), brittle.
• Extraction Steps:
  1. Roast ore at 750–900°C.
  2. Add lemon juice (100 cc per 100g ore) → forms copper & iron citrates.
  3. Mix with 25% borax (as flux) + more lemon juice → pressed into balls.
  4. Dry in sunlight.
  5. Melt at 1250°C through 4 stages → Sulphide-free copper extracted.

4. Copper Alloys - Brass & Bronze

• Excavations reveal brass objects dated from 1st century BCE to 16th century CE.
• Hiuen Tsang mentions brass made from copper + calamine.
• Brass/Bronze used for:
  • Idols of deities.
  • Decorative and utility objects.
  • Ritual implements and war items.

5. Archaeological Evidence of Brass Usage

---

Iron & Steel in Ancient India

1. The Delhi Iron Pillar (Qutub Minar)

• Weight: ~6000 kg
• Age: Over 1500 years
• Remarkable for its corrosion resistance, despite being exposed to open air.

2. Other Iron Structures in India

• Dhar Pillar (Madhya Pradesh) – 12th century CE, ~7000 kg.
• Mount Abu Iron Pillar (Rajasthan)
• Konark Temple Beams (Odisha) – 29 beams; some unearthed from sea sand.
• Puri Gundicha Temple – 239 iron pieces.
• Tanjavur Cannon (15th century) – Example of large forge-welded ironwork.
• Others at Bijapur, Gulbarga, Musheerabad, Dhaka, Narwar.

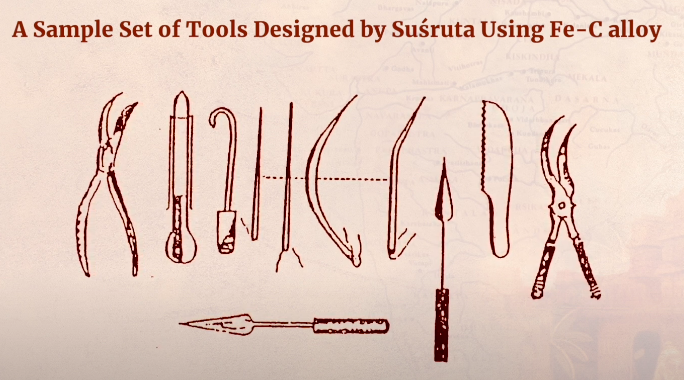

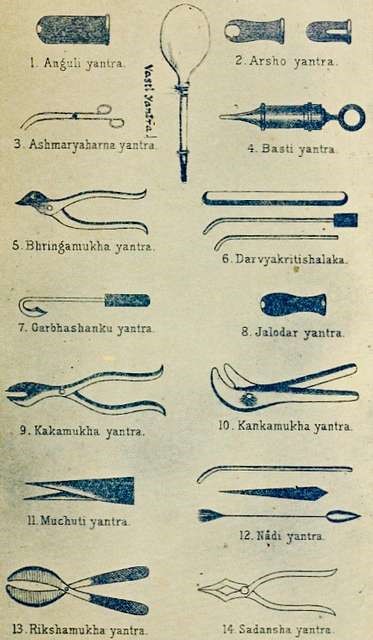

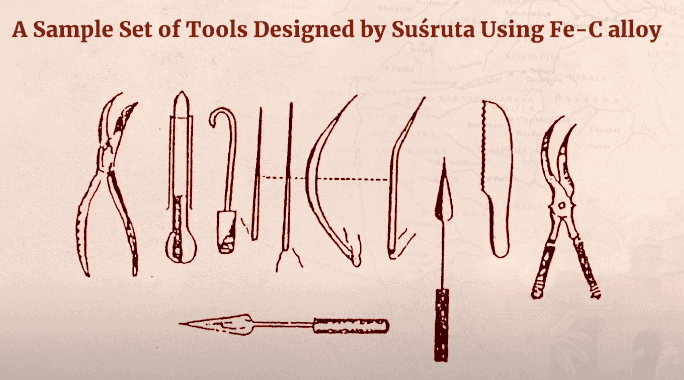

3. Sushruta Samhita (2nd Century BCE)

• Describes 100+ surgical instruments made from iron-carbon alloys.
• Tools sharp enough to split a hair longitudinally.

4. Wootz Steel

• Used in making legendary Damascus swords.
• Indicates advanced carbon steel production.

5. Stonework Clues

• Ashokan pillars carved from single stone.
• Requires high-carbon steel tools (chisels, saws).

---

Classifications in Ancient Texts

Rasa-Ratna-Samuchchaya (12th Century CE)

(Verses 67-83, Chapter 5): Classification of Ferrous Alloys

• Kanta-Loha (Soft Magnetic Iron)
  • Types: Bhramaka, Cumbaka, Karsaka, Dravaka, Romaka
  • Magnetic properties
• Tikshna-Loha (Carbon Steel)
  • Types: Khara, Sara, Hrnnala, Taravatta, Vajra, Kala
  • High cutting-edge, fibrous fracture
• Munda-Loha (Cast Iron)
  • Types: Mridu, Kuntha, Kadara
  • Soft and brittle iron, grey/white cast iron
• Note: These classifications predate the West's iron classification (1772 CE).

Quality Grading in Yuktikalpataru (11th Century CE)

(Shlokas 31-32, Chapter 85): Describes iron gradation

• Samanya (base)
• Crouncha: 2x better than Samanya
• Kalinga: 8x better
• Bhadra: 100× better
• Vajra: 1000× better
• Pandi: 6000× better
• Niravi: 60,000× better
• Kanta: 10 billion× better

---

Smelting & Crafting Process

• Indian furnaces: Reusable (unlike other dug-in clay models)
• Smelting communities:
  • Asuras & Agarias → Converted ore to wrought iron
  • Loharins → Forged tools from iron
• Women also involved; mantras/verses still exist as folk songs

---

Steel Production in Ancient India

• Two methods:
  1. Removing carbon from cast iron
  2. Carburizing wrought iron (Indians used this)
• This method discovered in England only in 18th Century.
• India used it from ancient times.

Indian Crucible Steel Method

• Wrought iron cut → crucibles + dried branches + green leaves
• Crucibles sealed & fired for ~6 hrs
• Water-cooled → yields conical steel blocks
• Use of hydrocarbons (leaves/wood) = faster reaction
  • Western method takes 6–20 days
  • Indian method takes ~4–6 hours

---

Lost Wax Casting (Madhuchista Vidhanam)

• Madhuchista Vidhanam literally means "the technique using the leftover wax from honeycombs."
• This method was used extensively for casting idols and metal sculptures, especially during the Chola period in Tamil Nadu.
• These sculptures were often made in bronze or using a five-metal alloy called Pancha-Loha, which includes gold, silver, lead, copper, and zinc.

Literary References and Documentation

This process has been documented in several ancient texts:

• Vishnu Samhita (5th Century CE) – Mentions the requirement to first create a wax model before casting in metal.
• Manasara - A vastu text, devotes an entire chapter (68) detailing the steps of lost wax casting.
• Manasollasa and Abhilashitha Chintamani (12th Century CE) - Describe in detail the preparation of wax patterns, clay slurry coating, and other technicalities.

Materials & Techniques

• Clay slurry used in the process included finely ground charred rice husk, clay, and sodium chloride.
• Still practiced by Bastar tribals in present-day Chhattisgarh for crafting brass and bronze objects.

---

Indian Astronomy - An Introduction

• Astronomy is the study of celestial bodies like stars, planets, the moon, and the sun.
• It connects directly to daily life - seasons, months, years, rainfall, festivals, etc.

Indian Perspective on Astronomy

• For Indians, the sky and celestial bodies are not just objects "out there" but are deeply connected to life on Earth.
• Sun, though seen as a gas ball in modern science, was considered life-giving and sacred.
• Indian astronomy was integrated with culture, rituals, and everyday activities.

Key Features of Indian Astronomy

1. Mutual Dependence - Earth and sky influence each other.
2. Kala Nirnaya (Time Calculation) – Knowing sun/moon positions helped plan daily & seasonal activities.
3. Panchanga - Indian calendar used daily by people across society.
4. Observational in Nature - Based on watching the sky and noting patterns.

---

What Made Indian Astronomy Unique

• It was practical, continuous, and deeply rooted in civilizational needs.
• Astronomy wasn't a niche science - it was for everyone, from farmers to scholars.

---

Evidence from Vedic Texts (Dated using star positions)

---

Indian Science & Technology - Beyond Metals

• Earlier videos showed how ancient Indians were skilled in metal technology, like extracting metals and making corrosion-resistant steel.
• Now, we'll explore other areas of Indian science and technology using three approaches:
  1. Archaeological evidence
  2. Physical structures
  3. Ancient literature

Key Observations:

• From excavation remains (like mines & furnaces), it's clear Indians had deep engineering knowledge.
• They could:
  • Extract metals effectively
  • Build large temples and structures
  • Create advanced irrigation systems
  • Use metals in medicine and surgery
• Ancient texts mention sea trade with:
  • China & Southeast Asia (East)
  • Roman Empire (West)
  • → This suggests they had advanced shipbuilding skills.

18th Century Evidence (Dharampal's Work):

• Indian science & tech was thriving even in the 1700s.
• Examples:
  • Inoculation for smallpox
  • Plastic surgery
  • High-quality textile production (e.g., Madras cloth)
• European visitors admired and suggested adopting Indian methods.

---

Indian Literary Sources on Engineering & Technology

• Iron Pillars lasting 1000+ years suggest strong metallurgical knowledge and skilled ironsmiths – not accidents.
• Evidence of copper, zinc, brass, bronze points to widespread knowledge in metallurgy.
• Large temples across India indicate advanced skills in:
  • Architecture
  • Iconography
  • Construction management
  • Possibly even supply chain systems
• Amarakosha (lexicon) includes terms related to:
  • Metals
  • Engineering tools and techniques
  • → Proves such practices were common and needed a vocabulary.

---

Vedic References

• Rigveda: Mentions iron, ironsmiths, and melting processes.
• Atharvaveda & Yajurveda: Talk of 6 metals – gold, silver, iron, tin, lead, copper.
• Occupational categories listed → proves presence of tech-based professions.
• Chandogya Upanishad: Mentions red/black metals → types of copper.

Epic & Legal References

• Ramayana: Describes iron ores, mines, metals.
• Manusmriti: Talks of utensils made of iron, brass, bronze, etc.; mentions cleaning agents like ash, acid.

Classical Texts (2nd BCE onwards)

• Charaka & Sushruta Samhita:
  • Surgical tools, copper-brass-zinc alloys.
  • Developed metal-based surgical interventions.
• Arthashastra (Kautilya):
  • Discusses state roles (superintendent of mines, ships, weaving).
  • Describes tools, metals, ores, coin-making & more.

Later Works (1st – 13th CE)

• Rasaratnakara (Nagarjuna):
  • Describes reduction of metals, yantras, alchemy, mercury compounds.
• Brihat Samhita (Varahamihira):
  • Includes mining, temple design, medicine, geology, and architecture.
• Yukti Kalpataru (Bhojaraja):
  • On architecture, ship types & construction.
• Samarangana Sutradhara (Bhojadeva):
  • Describes mechanical devices, architecture, and even flying machines.
• Manasollasa (King Someshvara):
  • Details lost wax casting for metal idols.
• Rasachintamani (Madanantadeva):
  • Covers chemistry + metallurgy, zinc production, medicines.
• Rasaratna Samuccaya (Vagbhata):
  • Encyclopedic work on:
    • Iron types
    • Extraction processes
    • Crucibles, furnaces, herbo-metallic medicine, etc.

---

Selected Sites and Their Contributions

---

What These Sites Tell Us

• Metallurgy: Iron Pillars (rust-resistant) show advanced metal science.
• Stone Technology: Huge temples, forts, wells → stone cutting, shaping tools existed.
• Iconography & Art: Cave paintings survived for centuries → use of durable dyes & chemicals.
• Architecture + Science: Many temples have astronomical alignments and precision.

---

Temples as Hubs of Ancient Engineering

• Temples in India, especially in the South, are great examples of ancient engineering and technology.
• The Brihadeeshwara Temple in Thanjavur, built by Raja Raja Chola I (1003–1010 CE), is an outstanding example:
  • The top dome is a single granite stone, placed over 210 feet high.
  • Granite is a very hard stone, which means powerful tools and techniques must have been used.
• Early South Indian temples (Pallava, Pandya, Chola) moved from using brick and wood to granite.
  • Mahendra Verman of the Pallava dynasty started this rock-cut style (~600 CE).
  • Cholas perfected it - best seen in Thanjavur and surrounding areas.

Engineering Marvels and Questions Raised

• Logistics and Supply Chain: How was granite transported over long distances without modern machinery?
• Height and Weight Challenges: How was the massive carved dome lifted and placed over 200 feet high?
• Tool Technology: To carve granite, they must have had special tools, possibly high-carbon steel.
• Acoustics Knowledge: "Musical pillars" in temples show that Indians knew how stone shape and size affect sound.

Khajuraho Temples: A Northern Example

• Built between the 9th–12th Century CE in Madhya Pradesh.
• Originally 85 temples; around 25 survive today.
• Showcases central Indian architectural styles:
  • East-West axis alignment.
  • Internal and external connectivity.
  • Rich iconographic sculptures - showing skilled craftsmanship.

---

Ancient Indian Irrigation & Water Management

• Kallanai (Grand Anicut), Tamil Nadu
  • World's oldest living dam (1st century CE)
  • Built by Chola king Karikalan on River Kaveri
  • Still in use for irrigation in the Kaveri Delta
  • British raised its height by 27 inches in 1804
• Dholavira (Indus Valley Civilization)
  • Had 16 large reservoirs (7m deep, 79m long)
  • Covered 10% of city area
  • Recent find: Rectangular stepwell
    • 73.4m x 29.3m × 10m (larger than Mohenjo-Daro's Great Bath)
• Mauryan Innovations
  • Sudarshana Dam by Chandragupta Maurya (Junagadh, Gujarat)
  • Ahar-Pyne system: rainwater harvesting (still used in Bihar & Chhota Nagpur)
• Sanchi & Buddhist Sites (300–200 BCE)
  • Ancient dams: 1m-6m height, 80-1400m length
  • Sites: Sanchi, Morel, Khurd, Sonari, Satdhara, Ander
• Southern India (Sangam Period: 300 BCE–300 CE)
  • Tank irrigation systems for paddy fields
  • Inscriptions in Uttara Merur show democratic water management

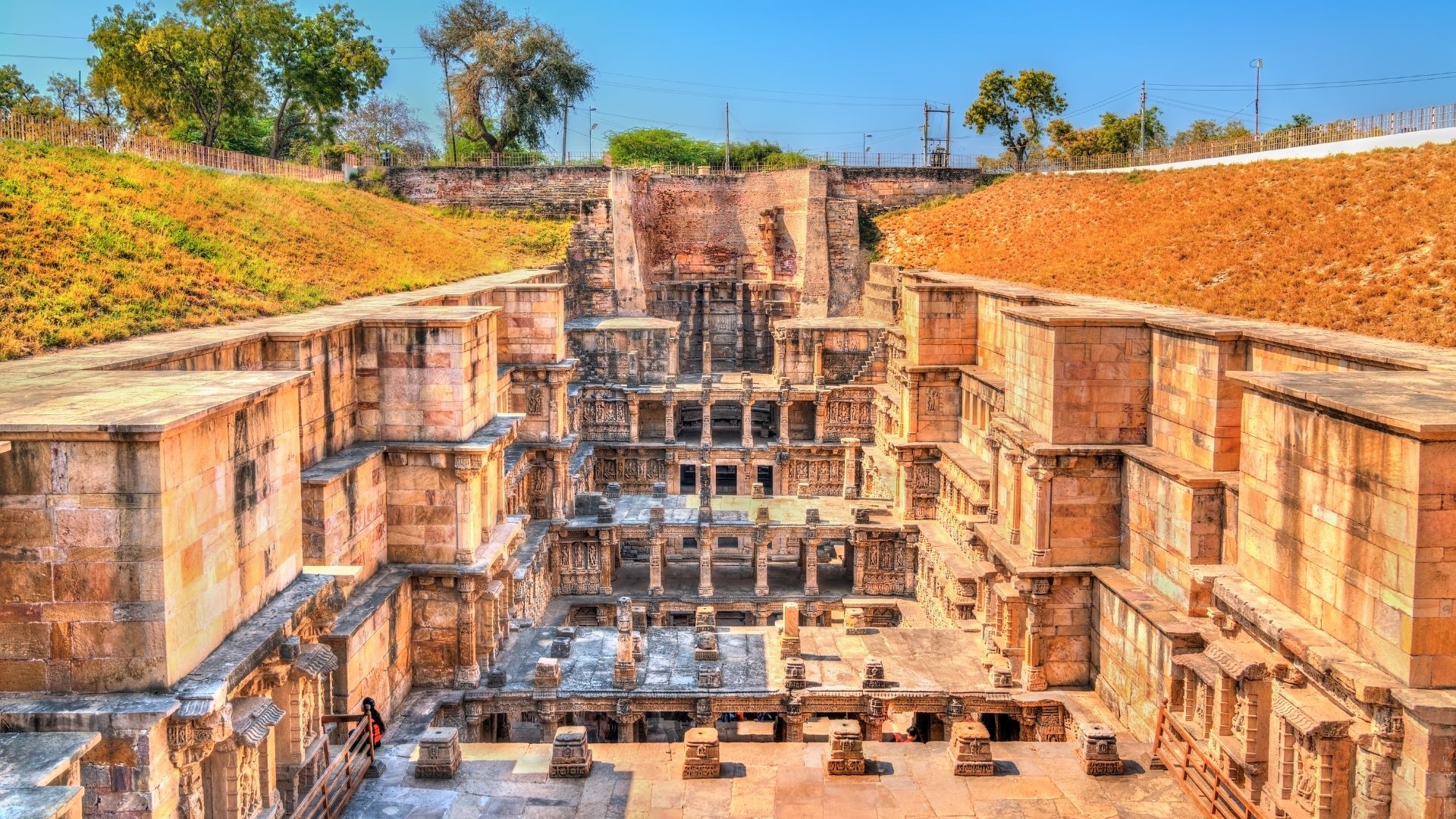

• Stepwells in Western India
  • Common in Rajasthan, Gujarat, Pakistan
  • Combined water storage + social & cultural hubs
  • Oldest evidence: Dholavira (stepped wells)
  • Ashokan inscriptions mention stepwells along roads for travelers
  • Described in Aparajita-Prccha (Gujarat text on art & architecture)

---

Dyes & Painting in Ancient India

1. Common Natural Dyes:
   • Indigo (Nila), Turmeric (Haridra), Madder (Manjistha), Resin (Ranjana)
   • Used in clothes, cosmetics, temple art, and exports (e.g., Egypt).
2. Dye Sources (as per Buddhist texts):
   • Roots, Trunks, Barks, Leaves, Flowers, Fruits
3. Art of Painting (Varnika-bhanga):
   • Color mixing seen as a key painting skill – mentioned in Kamasutra commentaries.
4. 5 Base Colors in Vishnudharmottara Purana:
   • White (Sveta), Yellow (Pita), Red (Vilohita), Black (Krishna), Blue (Nila)
   • Hundreds of shades made by mixing.
5. Use of Dyes in Life:
   • Cosmetics: Sandal paste, Collyrium (Anjana), Sindura, Lac, Tilaka
   • Natyashastra: Beautification through dyes (eyes, lips, teeth, face)
6. Making of Kunkuma (Red Tilaka Powder):
   • Palasha flower extract + rice powder + lime + sun drying = red dye pellets
7. Preparing Walls for Painting:
   • Vishnudharmottara's formula: Brick powder, clay, resin, wax, honey, molasses, grass, lime, bale pulp – soaked for a month
   • Result: Long-lasting murals (e.g., Ajanta, Ellora)
8. Vajralepa (Shivatattvaratnakara):
   • Buffalo hide paste + water, dried & reused for coating
   • Added pigments & minerals like conch powder, Naga (moon-white mineral) = glossy painting surface
9. Perfume & Incense Making:
   • Vishnudharmottara Purana: 8-step method (Sodhanam to Vedhanam)
   • Brihat Samhita (Varahamihira): Detailed chapter (Gandha-yukti) on perfume recipes

---

Surgical Techniques in Ancient India

• Salya-tantra: The ancient Indian science of surgery; "Salya" refers to foreign objects like arrows.
• Context:
  • Developed due to frequent war injuries (like arrows piercing the body).
  • Punishments like nose or tongue cutting also created a need for surgical solutions.
• Sushruta:
  • Known as the Father of Indian Surgery.
  • Wrote the Sushruta Samhita, a classical text on surgery.
  • Stressed clinical methods, ethical training, and surgeon discipline.
• Surgical Instruments:
  • 101 blunt and 20 sharp instruments.
  • Needles (straight, curved), splints, forceps, finger-knives, suture materials.
  • Special tools like Simhamukha Yantra (lion forceps), Mudrika Shastra (finger knife).
• Key Surgical Procedures:
  • Paracentesis for fluid removal from the abdomen.
  • Urinary stone removal similar to modern methods.
  • Fumigation of surgical rooms using herbs like guggulu for disinfection.
• Unique Practices:
  • Bloodletting techniques (Siravedha), leech therapy.
  • Used tree barks as splints for fractures (also antiseptic).
• Rhinoplasty (Nose Surgery):
  • Described in Sharira Sthana (Chapter 16) of Sushruta Samhita.
  • Used leaf to measure the damaged nose.
  • Took skin from the cheek/forehead and reattached with proper tubes to retain shape and airflow.

---

Ancient Indian Shipbuilding

Historical Evidence:

• Foreign records (Solvyns, 1811) praise Indian ships for their elegance and utility.
• English borrowed ideas from Indian shipbuilding for naval improvements.

Literary References:

• Sangam Literature (~2nd century BCE to 1st century CE): Mentions sea voyages and trade.
• Chola Kings (Raja Raja Chola & Rajendra Chola): Trade with Java, Sumatra, China.
• Buddhist Texts & Jataka Tales: Describe large ships (up to 800 cubits long), carrying hundreds of people.

Arthashastra (2nd Century BCE):

• Defines types of waterways:
  • Kulya – rivers and canals
  • Kulapatha – coastal routes
  • Samyanapatha – ocean routes
• Types of ships:
  • Samyatya-nava – ocean-going ships
  • Pravahana – sea vessels
  • Shanka-mukta-grahaniya-nava – for pearl fishing
  • Mahanava – for big rivers
  • Ksudraka-nava – for shallow rivers
  • Himsaka – pirate boats

Yukti-Kalpataru (11th Century CE):

• Chapters on shipbuilding: wood selection, seasons for building, river vs sea vessels.
• Warns against mixing woods or tying iron with string (magnetic issues).
• Cabin Types:
  • Full-length – for treasures, horses, women.
  • Middle – for rain/pleasure trips.
  • Front – for war and long travel.

Ship Sizes (Converted to meters):

• Ordinary (Samanya) ships: Lengths from ~4.5m to 34m
• Sea-going (Unnata) ships: Up to 50m long

Ordinary (Sāmānya)

Special: Sea-going (Unnatā)

---

Why Did This Knowledge Fade?

1. Oral Tradition
   • Knowledge passed verbally, not written.
   • Detailed technical processes were rarely documented.
2. Guru-Shishya Parampara
   • Skills were transmitted in person, often within families or close circles.
   • Examples: Vaidyas, astrologers, artisans.
3. Caste-System Alignment
   • Castes often aligned with specific crafts (e.g. goldsmiths, blacksmiths).
   • Disruption of caste system broke the chain of skill transmission.
4. Foreign Rule (700+ years)
   • Massive destruction of manuscripts (e.g. Nalanda library).
   • Cultural damage and loss of knowledge continuity.
5. Colonial Policies
   • British banned local mining, taxed artisans → discouraged local industry.
   • Introduction of English education shifted attention from indigenous knowledge.

---

What Can Be Done Now?

• Explore ancient texts (manuscripts, inscriptions).
• Visit traditional communities & villages to observe remaining practices.
• Reverse-engineer from ancient structures & tools.
• Study living traditions and integrate them with modern research.
